Medical Isolation Transformer Box

Medical Isolation Built-In Transformer Box CDF Ⅲ series.

CDF_all

Feature of products

  • This Built-in UL and IEC certificated Transformer
  • Minimum Leakage Current (Adopting Specialized Structure of the our patent).
  • Excellent Noise Attenuation Characteristic (below modulus of decay -25db interactive common mode, normal mode, and between 100KHZ-1GHZ)
  • Small size and lightness (because of Adopting high permeability core)
  • Strong Environment Temperature (B Class Insulation, 130℃)
  • Built-in the Thermal Fuse as the security precaution
  • It is a standard of UL2601-1, and the condition “The earth leakage current of the total of the entire equipment is 500μA or less” can be satisfied with supplying the electric power from the outlet of CDF1 to Medical Equipment.





Medical Isolation Built-In Transformer Box CFW Ⅲ series.

CFW1-1500BIII

Feature of products

  • This Built-in UL and IEC certificated Transformer
  • Minimum Leakage Current (Adopting Specialized Structure of the our patent).
  • Excellent Noise Attenuation Characteristic (below modulus of decay -25db interactive common mode, normal mode, and between 100KHZ-1GHZ)
  • Small size and lightness (because of Adopting high permeability core)
  • Strong Environment Temperature (B Class Insulation, 130℃)
  • Built-in the Thermal Fuse as the security precaution
  • It is a standard of UL2601-1, and the condition “The earth leakage current of the total of the entire equipment is 500μA or less” can be satisfied with supplying the electric power from the outlet of CDF1 to Medical Equipment.

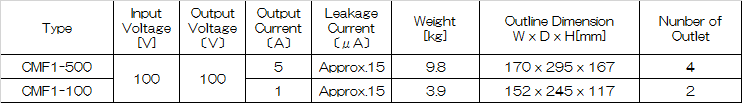

Medical Isolation Built-In Transformer Box CMF series.



Feature of products

  • The PSE mark by Electrical Appliances and Materials Safety Law (Japanese PSE Law) has acquired.
  • CMF1 is suitable power supply for the supply of the electric power to the video, the monitor, the personal computer, and the printer, etc. used on a medical site. It is a standard of UL2601-1, and the condition “The earth leakage current of the total of the entire equipment is 500μA or less” can be satisfied.
  • Because the PSE mark is acquired, the safety of the product is guaranteed, and it is possible to use it widely excluding a medical site.
